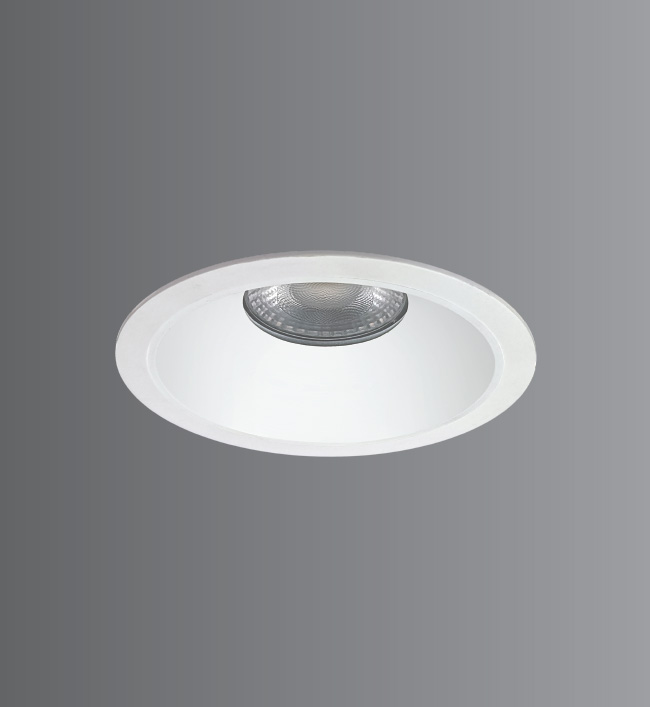

Liya
Our recess-mounted range of LED ceiling lights offers exceptional versatility for diverse lighting applications. Featuring high-quality LED sources, these luminaires ensure minimal energy consumption and an extended service life. Designed to accommodate both low and high mounting heights, they are ideal for installation in ceilings, catering to interior and exterior settings alike. With an elegant design that adheres to green lighting standards, these fixtures exemplify energy efficiency and aesthetic appeal.

Material
Body : Die-cast aluminium alloy
Ingress Protection : IP65
Lens : Polycarbonate optical lens
Mounting : Recessed

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz

Product Configurations
Wattage : 12W LED
Beam Angle : 60° (15° / 24° / 36° on request)
CCT : 2700K / 3000K / 4000K / 6000K
LED Life Time : L70 B10 60,000 H

Area Of Application
Retail Sector, Commercial & Business Centers, Residential town ships, Educational Institutes, Hospitality & Industrial sector, Entrance foyer.

Available Finish
Pure polyester powder coated RAL 9016 Traffic white.

Downloads
Catalogue Page

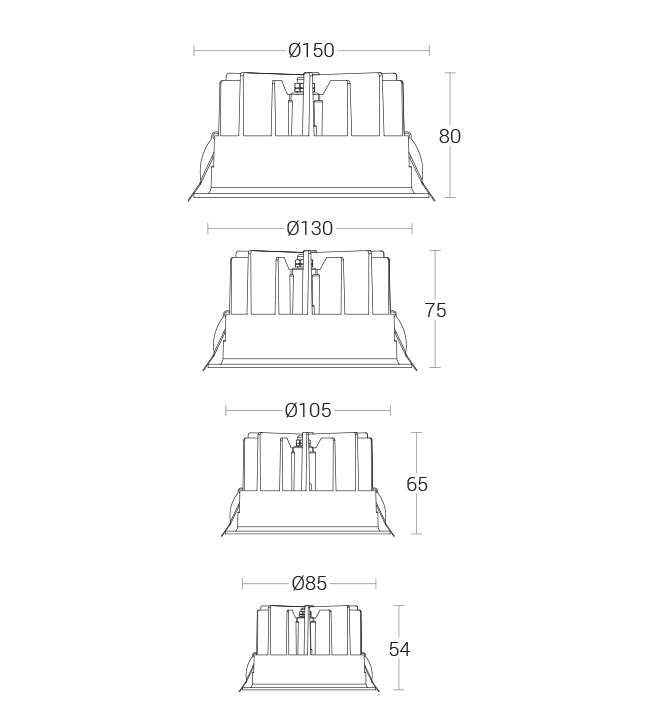

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-281618W LED 2700K,3000K,4000K,6000K BA:60°, Polycarbonate Optical LensC.O.D : Ø95mm2816.pdf
KL-281730W LED 2700K,3000K,4000K,6000K BA:60°, Polycarbonate Optical LensC.O.D : Ø115mm2817.pdf
KL-2817.txt
KL-281840W LED 2700K,3000K,4000K,6000K BA:60°, Polycarbonate Optical LensC.O.D : Ø135mm2818.pdf
KL-281512W LED 2700K,3000K,4000K,6000K BA:60°, Polycarbonate Optical LensC.O.D : Ø75mm2815.pdf
